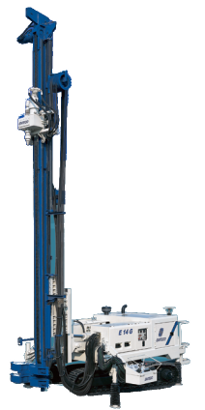

Enteco drilling rigs are innovative high performance machineries designed and manufactured according to the latest technological standards, as powerful and versatile rigs to perform Micropiles, Anchors, Tiebacks, Soil Investigation, DTH, Jet Grouting and CFA works. Operating weight of drilling rig models range from 4 up 20 tons.
Drilling rigs made by Enteco are provided with new generation diesel engines, load sensing hydraulic system, independent crawlers and outriggers, various drilling mast positioning systems including front zoom stroke capability to allow easy positioning on the bore hole and drilling all around the tracks with any tool application. Turret slewing ring for 360° rotation is also available.
The drilling system is made by modular mast system, rotary crowd by motoreducers, double hydraulic clamps for drill strings and casings up to 420 mm. Crowd system by hydraulic cylinder is also available.
Operating control panels are hinged type to be placed in the ideal position for the operator. All models can be equipped with remote wireless controls
Enteco equipment are designed with rotary tables developing a torque range from 400 up to 2000 kgm, with adjustable drilling speed up to 800 rpm. Enteco rotary tables for crawler drills are supplied with variable displacement hydraulic motors and speed gearboxes Enteco design .
Enteco units can be equipped with a wide range of auxiliary devices such as water pumps, foaming pumps, core ejection pumps, lubricating liner for DTH method and jet grouting kits. Special drilling rods loaders are also provided.
Weight - 92000 kg Retractable Crawler Width - 3000-4000 mm Track Pads Width - 800 mm Turret Rotation - 360 degree Diesel Engine - CAT C9 ACERT Rated Engine Power - 261 kW Drilling Heigh Max - 8800 mm Drilling Height Min. - 900 Drilling Radius Max - 6600 mm Drilling Radius Min. - 3600 mm Rotary Torque - 25 kN Crowd / Extraction Force - 100 kN Rotary Stroke - 14500 mm
Options: Rods Loader, Telescopic Crane, Wireless Operating Board, Electronic Positioning on the Drilling Holes
Weight - up to 40 tons Engine Power - 187kW / 250 HP Engine Model - C7 ACERT CAT Rotary Max Torque - 150 kNm Rotary Max Stroke - 3,8m Crowd Force - 140 kN Extraction Force - 150 kN Main winch max line pull - 150 kN Auxiliary winch max line pull - 50 kN Truck - Iveco Eurotrakker 6x6 Different Truck - Upon Request
Weight - up to 82 tons Engine Power - 261kW / 350 HP Engine Model - C9 ACERT CAT Rotary Max Torque - 280 kNm Rotary Max Stroke - 5100 mm Crowd Force - 300 kN Extraction Force - 240 kN Crawlers Width - 3000/4500 mm
BSP DX20-25 The DX-RT piling hammer is adapted for use on Railway infrastructure applications. Operating from small Road-Rail Excavators of approx 30T mass and above
BSP CG The CG range of piling hammers is designed for driving a variety of bearing piles including steel tube, combi piles, 'H' sctions and reinfoced pre stressed concrete piles. Operated from piling rig leaders or crane suspended
BSP CGL Digital readout with piles up to 2m that can be driven as standard, special attachments allow for larger diameters.
BSP SL-3 Designed for driving sheet piles and small bearing piles of concrete, steel or timber. Suspended or free standing options.
BSP CXu Designed to operate from standard USA leads or crane suspended. Suitable for driving a wide variety of bearing and sheet piles.
BSP DX20-30 Designed for small bearing piles of concrete, steel or timber and many sheet piles singly or in pairs. Th DX range is available with back guides for operating from any piling mast.
Hammer — 75,700 lbs. | Piston — 39,680 lbs. | Hammer with Standard Guiding — 82,600 lbs.
D225-22 Impact Weight approx. - 49,612 lbs. Energy per blow (adjustable) - 564,970 - 292,811 ft. lbs. Number of Blows - 36-50 bpm
D250-22 Impact Weight approx. - 55,050 lbs. Energy per blow (adjustable) - 631,351 - 331,903 ft. lbs. Number of Blows - 36-50 bpm
9000 Series Complete range of foundation rigs, comprising 5 basic models with overall weights varying from 60 to 220 tons. Within this range of equipment for medium and large projects the Contractors will find the machine that best suits their requirements. The machine is set up for two pull-down system: cylinder or winch, to be chosen according to the drilling system requirements.
8000 Series A complete range of Crawler Cranes, comprising 7 basic models from 18 Ton to 200 Ton lifting capacity, with engine power from 85 KW to 750 KW, with free-fall or standard winches from 5 Ton to 50 Ton line pull and with hydraulic systems that can provide the necessary oil flow and pressure to operate impact hammers, vibratory-hammers, casing oscillators, rotary drives and other heavy equipment. Machines designed for lifting, excavation and for multi-purpose foundation equipment.
7000 Series A complete range of pile driving rigs suitable for the application of hydraulic or diesel impact hammers to drive prefab concrete piles and steel piles. True to Enteco's multi-purpose philosophy, E7000 series can also be equipped with Rotary Drives, for the construction of bored piles, CFA piles, Soil Displacement piles, Double Rotary piles, Down the Hole piles, Soil Mixing piles and with Diaphragm Wall-grabs. The design and geometry of the E7060 allows for wide angle mast inclinations to drive raked piles.

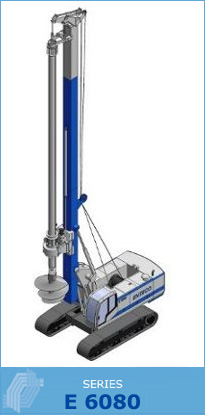

6000 Series Series of machines from 40 Ton to 70 Ton operating weight with the traditional pantograph mast support. Pre-arranged for two pull-down systems, winch or hydraulic cylinder. Self-erecting equipment, easy to transport All E6000 Series models are equipped with a strong upper frame that allows the mounting of rear outriggers to increase the efficiency of the crowd force on the tool (very important for soil displacement piles and cased bored piles).
5000 Series The E5000 Series: Dedicated rigs for CFA and Soil Displacement Piles.
Tunnel The range of equipment for tunnel consolidation manufactured by Enteco includes: E15 TJ • E412 T • E412 T2
Drilling Rigs Enteco drilling rigs are innovative high performance machineries designed and manufactured according to the latest technological standards, as powerful and versatile rigs to perform Micropiles, Anchors, Tiebacks, Soil Investigation, DTH, Jet Grouting and CFA works. Operating weight of drilling rig models range from 4 up 20 tons.
Tools & Accessories Enteco provides a wide range of accessories, auxiliary equipment and tools especially designed and engineered to be applied to Enteco range of rigs and cranes.
Special Equipment Jinnings works with Enteco, a world leader in manufacturing custom built high-end process drilling equipment. Our core expertise is building state-of-the-art special equipment and special applications designed according to the requirement of customers worldwide to face civil engineering challenges in the field of special foundation, soil consolidation and ground engineering works.
