Tunnel
The range of equipment for tunnel consolidation manufactured by Enteco includes:

E15 TJ
A compact unit for small-medium size tunnels; despite its size it can drill 12.5 m long holes at a max height of 6150 mm. The drilling radius varies from 1800 mm to 5000 mm.

E412 T
A powerful, reliable and versatile machine, can drill at 8.4 m height (with 5 degree mast inclination) with a stroke of 14.5m. The drilling radius varies from 3600 mm to 6800 mm.
Easily transportable without removing the mast, it’s fitted with effective positioning indicators, on-deck swinging control panel and rod loaders for easier and safer working operations.

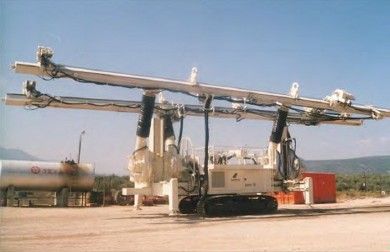

E412 T2
Fitted with two independent drill masts. It’s the ideal equipment for the consolidation of large size tunnels where high productivity is essential. The unit can be supplied with different mast lengths and various configurations of the supporting slides to suit specific requirements.
Stacks Image 815
Tunnel Information
Right Click to download PDF above
Weight - up to 26000 kg
Crawler Width - 2500 mm
Diesel Engine - CAT C6.6 ACERT
Rated Engine Power - 129 kW
Electric Motor (optional) - 80 kW
Drilling Height Max - 6150 mm
Drilling Height Min. - 300 mm
Drilling Radius Max - 5000 mm
Drilling Radius Min. - 3600 (5 degree incline) mm
1800 (0 degree incline) mm
Double Clamps Diameter - 60-350 mm
Rotary Torque - 12.5 kN
Rotary Speed - 0-250 rpm
Rotary Stroke Single Rotary - 13500 mm
Rotary Stroke Double Rotary - 12500 mm
Crowd / Extraction Force - 70 kN

Options: Rods Loader, Telescopic Crane, Wireless Operating Board, Electronic Positioning on the Drilling Holes
Stacks Image 613
Weight - up to 42000 kg
Diesel Engine - CAT C7 ACERT
Rated Engine Power - 187 kW
Drilling Height Max - 8000 mm
Drilling Height Min. - 900 mm
Drilling Radius Max - 6200 mm
Drilling Radius Min. - 3600 mm
Rotary Torque - 25 kN
Rotary Stroke - 14500 mm
Crowd / Extraction Force - 100 kN
Stacks Image 674

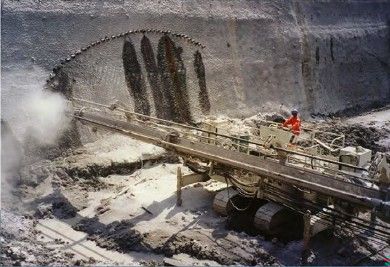

Weight - 92000 kg
Retractable Crawler Width - 3000-4000 mm
Track Pads Width - 800 mm
Turret Rotation - 360 degree
Diesel Engine - CAT C9 ACERT
Rated Engine Power - 261 kW
Drilling Heigh Max - 8800 mm
Drilling Height Min. - 900
Drilling Radius Max - 6600 mm
Drilling Radius Min. - 3600 mm
Rotary Torque - 25 kN
Crowd / Extraction Force - 100 kN
Rotary Stroke - 14500 mm

Options: Rods Loader, Telescopic Crane, Wireless Operating Board, Electronic Positioning on the Drilling Holes
Stacks Image 682

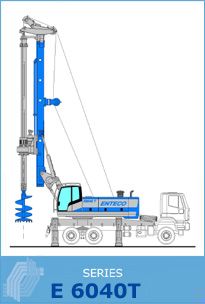

Weight - up to 40 tons
Engine Power - 187kW / 250 HP
Engine Model - C7 ACERT CAT
Rotary Max Torque - 150 kNm
Rotary Max Stroke - 3,8m
Crowd Force - 140 kN
Extraction Force - 150 kN
Main winch max line pull - 150 kN
Auxiliary winch max line pull - 50 kN
Truck - Iveco Eurotrakker 6x6
Different Truck - Upon Request
Stacks Image 690

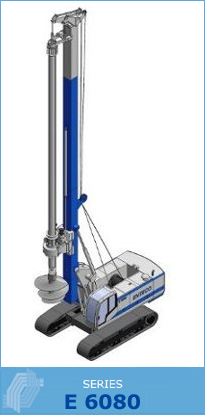

Weight - up to 82 tons
Engine Power - 261kW / 350 HP
Engine Model - C9 ACERT CAT
Rotary Max Torque - 280 kNm
Rotary Max Stroke - 5100 mm
Crowd Force - 300 kN
Extraction Force - 240 kN
Crawlers Width - 3000/4500 mm
Stacks Image 698
Stacks Image 617
BSP DX20-25
The DX-RT piling hammer is adapted for use on Railway infrastructure applications.
Operating from small Road-Rail Excavators of approx 30T mass and above
Stacks Image 618
BSP CG
The CG range of piling hammers is designed for driving a variety of bearing piles including steel tube, combi piles, 'H' sctions and reinfoced pre stressed concrete piles. Operated from piling rig leaders or crane suspended
Stacks Image 619
BSP CGL
Digital readout with piles up to 2m that can be driven as standard, special attachments allow for larger diameters.
Stacks Image 620
BSP SL-3
Designed for driving sheet piles and small bearing piles of concrete, steel or timber. Suspended or free standing options.
Stacks Image 621
BSP CXu
Designed to operate from standard USA leads or crane suspended. Suitable for driving a wide variety of bearing and sheet piles.
Stacks Image 622
BSP DX20-30
Designed for small bearing piles of concrete, steel or timber and many sheet piles singly or in pairs. Th DX range is available with back guides for operating from any piling mast.
Stacks Image 655
D6-42
Approximate Weights
  • Hammer — 3,572 lbs. | Piston — 1,323 lbs.
Stacks Image 656
D8-42
Approximate Weights
  • Hammer — 4,000 lbs. | Piston — 1,770 lbs. | Hammer with Standard Guiding — 5,350 lbs.
Stacks Image 657
D12-42
Approximate Weights
  • Hammer — 5,730 lbs. | Piston — 2,820 lbs. | Hammer with Standard Guiding — 7,100 lbs.
Stacks Image 658
D19-42
Approximate Weights
  • Hammer — 8,365 lbs. | Piston — 4,015 lbs. | Hammer with Standard Guiding — 9,700 lbs.
Stacks Image 659
D25-32
Approximate Weights
  • Hammer — 12,370 lbs. | Piston — 5,515 lbs. | Hammer with Standard Guiding — 14,800 lbs.
Stacks Image 660
D30-32
Approximate Weights
  • Hammer — 13,472 lbs. | Piston — 6,615 lbs. | Hammer with Standard Guiding — 15,900 lbs.
Stacks Image 661
D36-32
Approximate Weights
  • Hammer — 17,375 lbs. | Piston — 7,940 lbs. | Hammer with Standard Guiding — 19,900 lbs.
Stacks Image 662
D46-32
Approximate Weights
  • Hammer — 19,580 lbs. | Piston — 10,145 lbs. | Hammer with Standard Guiding — 22,100 lbs.
Stacks Image 663
D62-22
Approximate Weights
  • Hammer — 27,077 lbs. | Piston — 13,670 lbs. | Hammer with Standard Guiding — 29,300 lbs.
Stacks Image 664
D80-23
Approximate Weights
  • Hammer — 37,275 lbs. | Piston — 17,640 lbs. | Hammer with Standard Guiding — 41,200 lbs.
Stacks Image 665
D100-13
Approximate Weights
  • Hammer — 44,894 lbs. | Piston — 22,045 lbs. | Hammer with Standard Guiding — 48,800 lbs.
Stacks Image 666
D125-13
Approximate Weights
  • Hammer — 53,616 lbs. | Piston — 27,560 lbs. | Hammer with Standard Guiding — 60,252 lbs.
Stacks Image 667
D138-32
Approximate Weights
  • Hammer — 57,360 lbs. | Piston — 30,420 lbs. | Hammer with Standard Guiding — 64,300 lbs.
Stacks Image 668
D160-32
Approximate Weights
  • Hammer — 68,785 lbs. | Piston — 35,275 lbs. | Hammer with Standard Guiding — 74,516 lbs.
Stacks Image 669
D180-32
Approximate Weights
  • Hammer — 75,700 lbs. | Piston — 39,680 lbs. | Hammer with Standard Guiding — 82,600 lbs.
Stacks Image 670
D225-22
Impact Weight approx. - 49,612 lbs.
Energy per blow (adjustable) - 564,970 - 292,811 ft. lbs.
Number of Blows - 36-50 bpm
Stacks Image 671
D250-22
Impact Weight approx. - 55,050 lbs.
Energy per blow (adjustable) - 631,351 - 331,903 ft. lbs.
Number of Blows - 36-50 bpm
Stacks Image 633
9000 Series
Complete range of foundation rigs, comprising 5 basic models with overall weights varying from 60 to 220 tons.
Within this range of equipment for medium and large projects the Contractors will find the machine that best suits their requirements.
The machine is set up for two pull-down system: cylinder or winch, to be chosen according to the drilling system requirements.
Stacks Image 634
8000 Series
A complete range of Crawler Cranes, comprising 7 basic models from 18 Ton to 200 Ton lifting capacity, with engine power from 85 KW to 750 KW, with free-fall or standard winches from 5 Ton to 50 Ton line pull and with hydraulic systems that can provide the necessary oil flow and pressure to operate impact hammers, vibratory-hammers, casing oscillators, rotary drives and other heavy equipment.
Machines designed for lifting, excavation and for multi-purpose foundation equipment.
Stacks Image 635
7000 Series
A complete range of pile driving rigs suitable for the application of hydraulic or diesel impact hammers to drive prefab concrete piles and steel piles.
True to Enteco's multi-purpose philosophy, E7000 series can also be equipped with Rotary Drives, for the construction of bored piles, CFA piles, Soil Displacement piles, Double Rotary piles, Down the Hole piles, Soil Mixing piles and with Diaphragm Wall-grabs. The design and geometry of the E7060 allows for wide angle mast inclinations to drive raked piles.
Stacks Image 636
6000 Series
Series of machines from 40 Ton to 70 Ton operating weight with the traditional pantograph mast support.
Pre-arranged for two pull-down systems, winch or hydraulic cylinder.
Self-erecting equipment, easy to transport All E6000 Series models are equipped with a strong upper frame that allows the mounting of rear outriggers to increase the efficiency of the crowd force on the tool (very important for soil displacement piles and cased bored piles).
Stacks Image 637
5000 Series
The E5000 Series: Dedicated rigs for CFA and Soil Displacement Piles.
Stacks Image 638
Tunnel
The range of equipment for tunnel consolidation manufactured by Enteco includes:
E15 TJ E412 TE412 T2
Stacks Image 639
Drilling Rigs
Enteco drilling rigs are innovative high performance machineries designed and manufactured according to the latest technological standards, as powerful and versatile rigs to perform Micropiles, Anchors, Tiebacks, Soil Investigation, DTH, Jet Grouting and CFA works. Operating weight of drilling rig models range from 4 up 20 tons.
Stacks Image 640
Tools & Accessories
Enteco provides a wide range of accessories, auxiliary equipment and tools especially designed and engineered to be applied to Enteco range of rigs and cranes.
Stacks Image 641
Special Equipment
Jinnings works with Enteco, a world leader in manufacturing custom built high-end process drilling equipment. Our core expertise is building state-of-the-art special equipment and special applications designed according to the requirement of customers worldwide to face civil engineering challenges in the field of special foundation, soil consolidation and ground engineering works.
Stacks Image 644
HM 25
Vibrator Specifications
  • Hydraulic — Type | 20 — Hydraulic Horsepower | 2,000 — Frequency | 3/8 inch — Amplitude
Stacks Image 1397
HM 65
Vibrator Specifications
  • Hydraulic — Type | 60 — Hydraulic Horsepower | 1,800 — Frequency | 5/8 inch — Amplitude
Stacks Image 645
HM 65e
Vibrator Specifications
  • Hydraulic — Type | 1,800 — Frequency | 1950 — Working Weight | 9/16 inch — Amplitude
Stacks Image 646
HM 75e
Vibrator Specifications
  • Hydraulic — Type | 5/8 inch — Amplitude | 1,800 VPM — Frequency
Stacks Image 647
HM 150
Vibrator Specifications
  • Hydraulic — Type | 150 — Horsepower | 1,700 VPM — Frequency | 3/8 - 5/8 inch — Amplitude
Stacks Image 648
HM 150e
Vibrator Specifications
  • Hydraulic — Type | 3/4 inch — Amplitude | 1,700 VPM — Frequency | 3,100 lbs. — Working Weight
Stacks Image 649
HM 400
Vibrator Specifications
  • Hydraulic — Type | 140 — Horsepower | 1,700 VPM — Frequency | 7/8 inch — Amplitude
Stacks Image 1400
HM 800
Vibrator Specifications
  • Hydraulic — Type | 140 — Horsepower | 1,700 VPM — Frequency | 7/8 inch — Amplitude
Stacks Image 650
HM 1200
Vibrator Specifications
  • Hydraulic — Type | 140 — Horsepower | 1,250 — Frequency | 7/8 inch — Amplitude
Stacks Image 651
HM 1700
Vibrator Specifications
  • Hydraulic — Type | 180 — Horsepower | 1,200 — Frequency | 7/8 inch — Amplitude
Stacks Image 652
HM 3000
Vibrator Specifications
  • Hydraulic — Type | 280 — Hydraulic Horsepower | 1,200 — Frequency | 7/8 inch — Amplitude
Stacks Image 653
HM 3700
Vibrator Specifications
  • Hydraulic — Type | 280 — Hydraulic Horsepower | 1,200 — Frequency | 1-1/8 inch — Amplitude
Stacks Image 654
SVC Multiplier
SVC 80 and 100 — more info >>
